Cisco 3850 Series Power Supply - PWR-C1-350WAC 350W AC Config 1 Power Supply for 3850
Dual redundant modular power supplies. The Cisco Catalyst 3850 Series Switches support dual redundant power supplies. 6 The switch ships with one power supply by default, and the second power supply can be purchased at the time of ordering the switch or at a later time. If only one power supply is installed, it should always be in power. Just a quick one today. Ever so often, you need to check the status of a the power supplies in a switch or router. That information is nestled snugly in the show environment command. I'll give you the proper syntax and results for a few different platforms.
Series.
PWR-C1-350WAC Specification | |
Power supply rated maximum | 350W |
Total output BTU (Note: 1000 BTU/hr = 293W) | 1207BTU/hr, 350W |
Input-voltage range and frequency | 100-240VAC, 50-60 Hz |
Input current | 4-2A |
Output ratings | -56V at 6.25A |
Output holdup time | 16.7 ms minimum at 100VAC |
Power-supply input receptacles | IEC 320-C16 (IEC60320-C16) |
Power cord rating | 10A |
Physical specifications | (H x W x D): 1.58 X 3.25 X 12.20 in Weight: 2.6 lb |
Operating temperature | 23 to 113°F (-5 to 45°C) |
Storage temperature | -40 to 158°F (-40 to 70°C) |
Relative humidity operating and nonoperating noncondensing | 5 to 90% noncondensing |
Altitude | 10,000 ft. (3000 meters), up to 45°C |
MTBF | Calculated MTBF must be greater than 300,000 using Telcordia SR-332, Method 1, Case 3. Demonstrated MTBF is 500,000 hr (with 90% confidence level). |
EMI and EMC compliance | FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55022 Class A CISPR 22 Class A AS/NZS 3548 Class A BSMI Class A (AC input models only) VCCI Class A EN 55024, EN300386, EN 50082-1, EN 61000-3-2, EN 61000-3-3 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN 61000-6-1 |
Safety compliance | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking |
LED indicators | “AC OK”: Input power to the power supply is OK “PS OK”: Output power from the power supply is OK |
Cisco 3850 Series Power Supply PWR-C1-350WAC= is sealed in cisco original box. We will also
Cisco 3850 Power Supply Slot B
pack PWR-C1-350WAC= with second box before shipping.
Our products will be send via FedEx,DHL,TNT,UPS,EMS and so on.but the buyer is responsible for
customs clearance and pay tariff when the product arrived destination country.
Shipping Methods | |
2-4 business days. | |
2-4 business days | |
2-4 business days | |
5-7 business days. | |
Cisco 3850 Power Supply
Payment Method
T/T,Western Union, HSBC and Money Gram will be accept.Faster payment will help you to get the
items earlier.

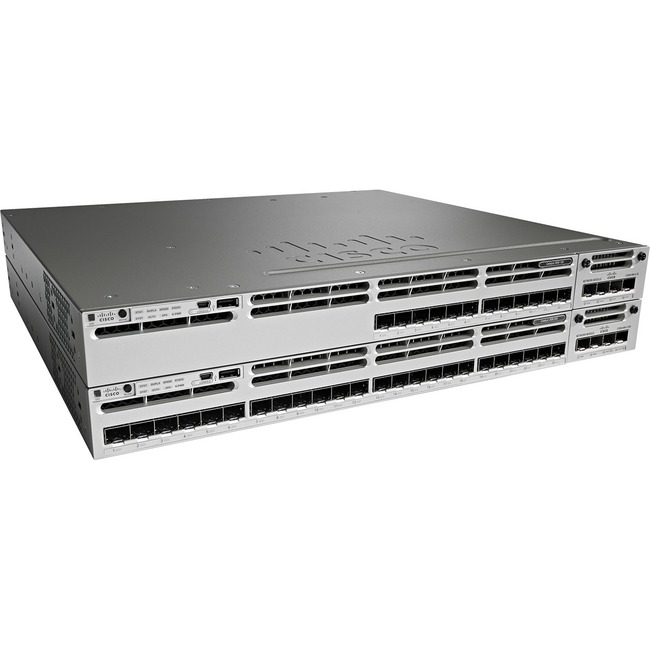

Cisco Catalyst 3850 Power Supply
| Bundled Services | Limited lifetime warranty |
| Capacity | IPv4 routes: 24000 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at |
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Dimensions (WxDxH) | 17.5 in x 17.7 in x 1.8 in |
| Enclosure Type | Desktop, rack-mountable 1U |
| Features | Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking |
| Jumbo Frame Support | 9198 bytes |
| MAC Address Table Size | 32000 entries |
| Manufacturer Warranty | Limited lifetime warranty |
| Performance | Switching capacity: 88 Gbps |
| PoE Budget | 435 W |
| Ports | 24 x 10/100/1000 (PoE+) |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Power Over Ethernet (PoE) | PoE+ |
| Power Redundancy | Optional |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI |
| Routing Protocol | BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, RIPng |
| Subtype | Gigabit Ethernet |
